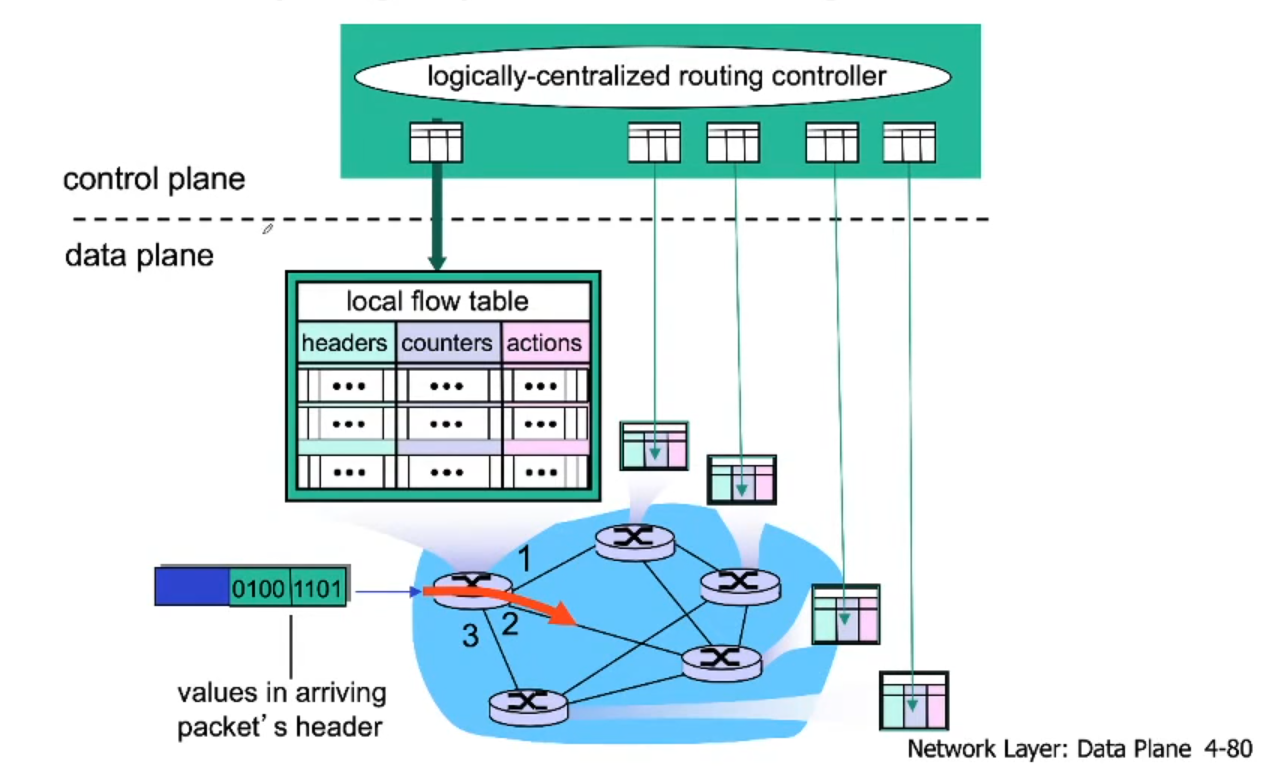

• Each router contains a flow table(forwarding table in tradicional forwarding) that is computed and distributed by a logically centralized routing controller (control plane)
• In SDN tables are generated from the routing algorithm computation
• In tradicional forwarding we have prefix and link interface in the second collumn
• In SDN, flow tables have actions are more general, not just forwarding. Flows are entries/rows in the table. Packets that have matching headers take a certain action (drop, copy, modify, log packet)

generalized forwarding: simple packet-handling rules

• Pattern: match values in packet header fields
• Actions for matched packet: drop, forward, modify, or send to controller
• Priority: disambiguate overlapping patterns (a header might have more than one match, so more than one action)
• Counters: # bytes and # packets
• Router's flow table define router's match + action rules

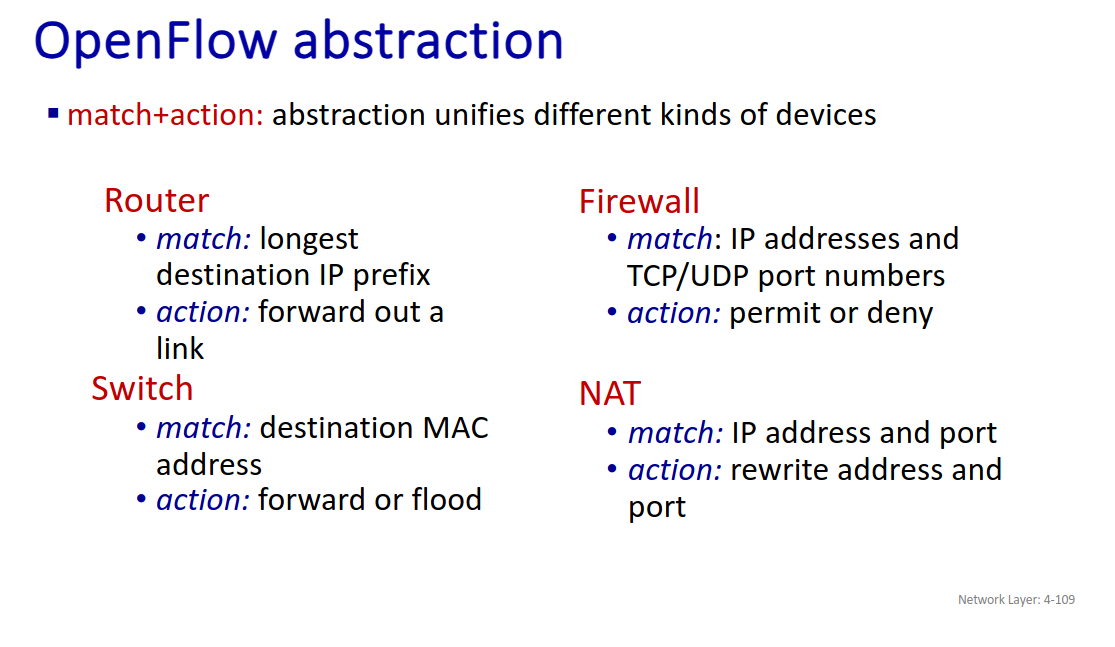

OpenFlow Abstraction

OpenFlow - protocol between controller and flow table

MiddleBoxes

• initially: proprietary (closed) hardware solutions
• move towards “whitebox” hardware implementing open API -> move away from proprietary hardware solutions -> programmable local actions via match+action -> move towards innovation/differentiation in software
• SDN: (logically) centralized control and configuration management often in private/public cloud
• network functions virtualization (NFV): programmable services over white box networking, computation, storage
