Salomé Faria

File: a linear array of bytes that can be read and written -> User know high-level user-readable name of file -> Low level nade is the inoded number (i-number)
Directory: a container of files and other directories (also identified by a low-level i-number) -> By placing directories within directories, one can build directory trees (or directory hierarchies) -> A file absolute pathname is the full path from the root directory until that file (e.g., /bar/foo/bar.txt)
A File Descriptor (FD) is an integer that can be used to read and/or write the file
Each process maintains an array of file descriptors (also referred to as file descriptor table)

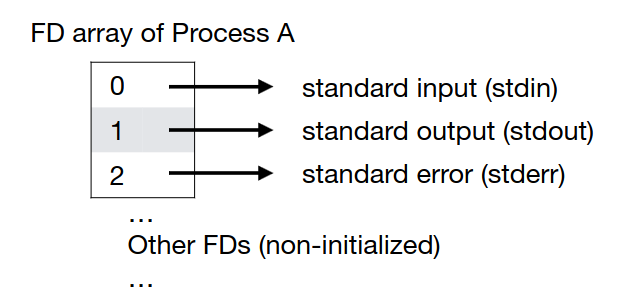

When a process starts running, this process table already has standard FDs initialized for:


In most cases, processes do not share open file table's entries.

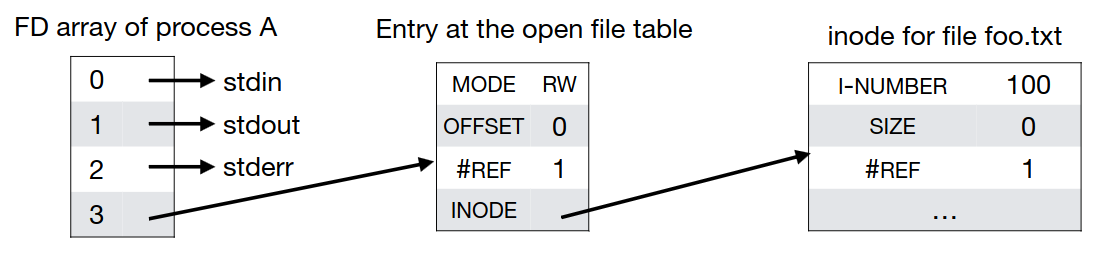

The open file table entry maps to an inode entry (identified by its i-number)


Files can be done through the mmap() system call. It maps the file into memory so that it can be manipulated with memory instructions


lseek() does not perform a disk seek. It only changes the offset variable in the file table entry. A disk seek is performed when accessing sectors in distinct tracks

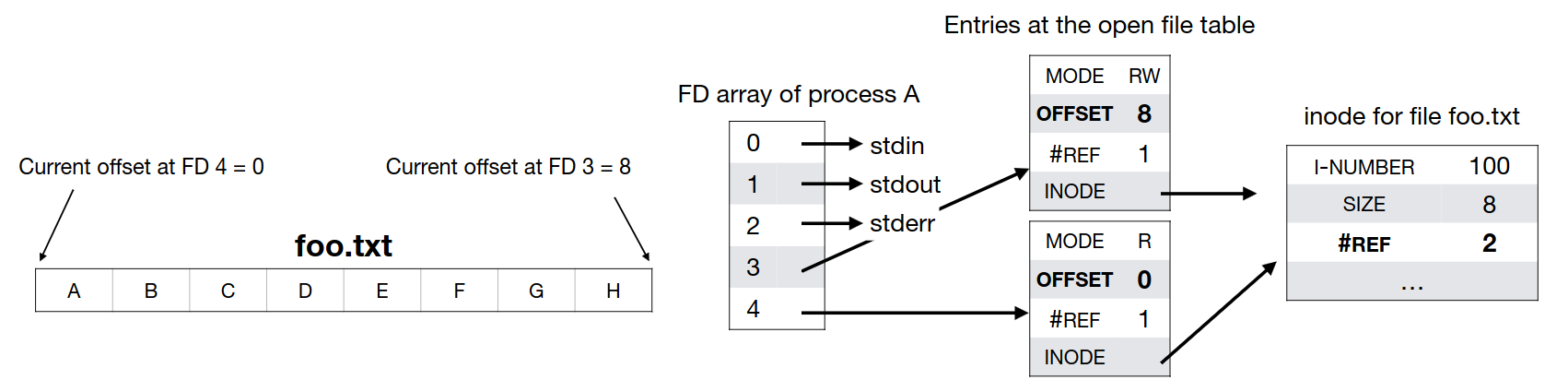

Unrelated processes opening the same file have their own file table entries (inode is shared)

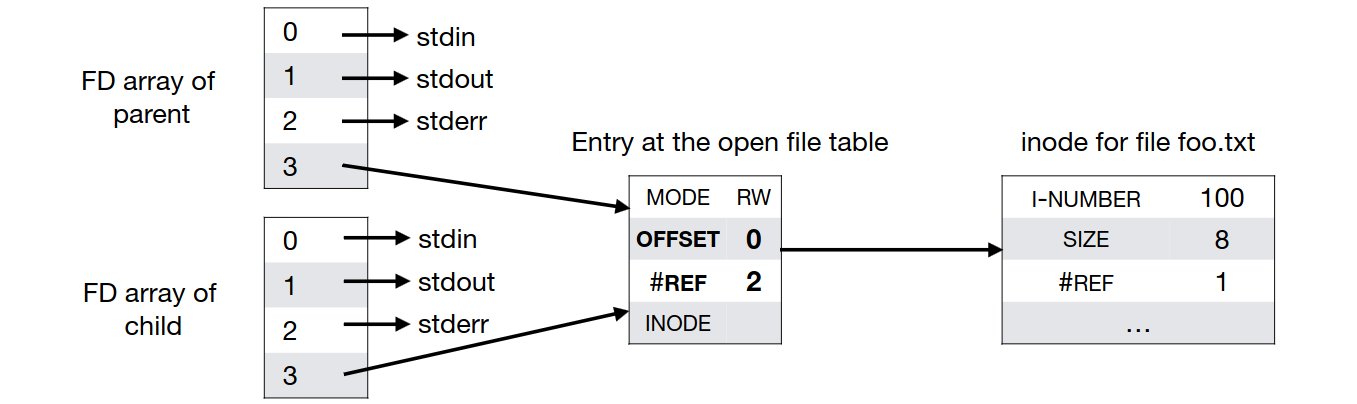

When a process calls fork(), the child process has its own array of file descriptors but shares the open file table entry with the parent
multiple related processes reading, writing, and seeking a file, may update the offset field concurrently


unlink → deletes the inode when the number of references to it reaches 0

If the machine crashes, buffered data gets lost
The int fsync(int fd) call forces the FS to write all dirty data of a given file
The stat() and fstat() system calls allow checking metadata about a file, given its filename or descriptor, respectively
Directories cannot be written to. These are updated indirectly by creating files or other directories in it
Files and directories are shared across several users
Permission bits (rw-r—r--) allow specifying what the owner of the file, someone in a group, and other users can do
Strace is a program to trace system calls, useful for observing what OS services the program is requesting
To make a file system, most FSs provide a tool usually referred to as mkfs
The mount command (which internally uses the mount() system call) takes an existing directory as the target mount point (i.e., the directory where the file system is attached to and made available to the system)

Two important aspects to a file system: ->Data structures: what on-disk structures are used by the FS to organize its data and metadata
-> Access methods: How are calls like open(), read(), write(), etc mapped to these data structures
The disk is organized as an array of blocks -> The data region holds data from the user and applications (e.g., files’ content)
->The metadata region holds meta-information about files, and the file system (where the inode table is stored)
The meta data region also has two simple bitmaps, one for inodes and another for data blocks
The first block at the metadata region holds the superblock that keeps information about the FS organization (e.g., the number of inodes and data blocks, where the bitmaps and inode table begin, …). When mounting the file system, the OS will read the superblock first
Disk layout: divided into blocks (data + metadata regions).
Inodes: store file metadata and pointers to data blocks.
Bitmaps: track free inodes and blocks.
Superblock: stores global FS info (locations of inodes, bitmaps).

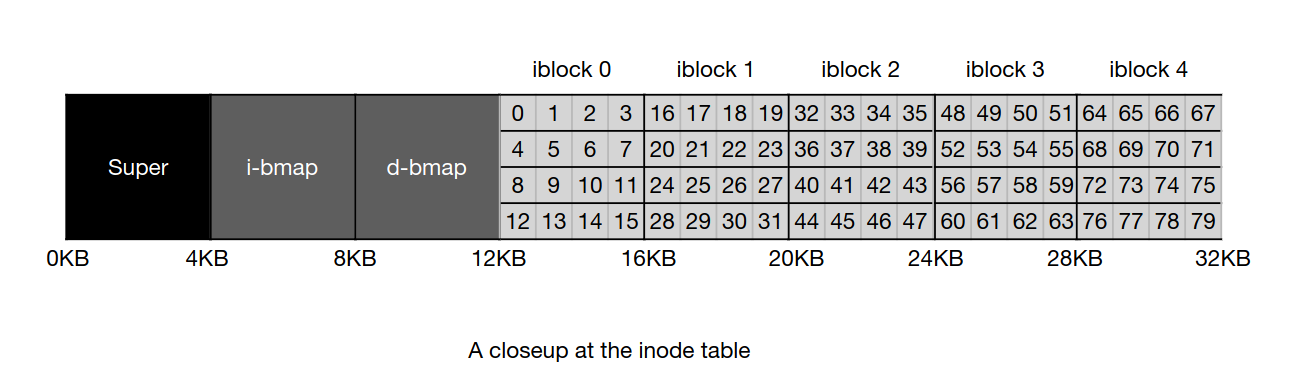

Since the inode table is located in a fixed disk region, it is easy to quickly find the information from the disk for a given inode. Inode means index-node


Directories also have inodes stored somewhere in the inode table. The inode type is marked as a directory instead of a regular file

File updates involve multiple writes (inode, block, bitmap).
Risks: power loss may cause inconsistencies (e.g., garbage pointers, space leaks).- Solutions: -> fsck: checks and repairs file systems. -> Journaling: logs updates before committing them (used in ext4). -> Log-structured FS: uses copy-on-write (e.g., ZFS).
